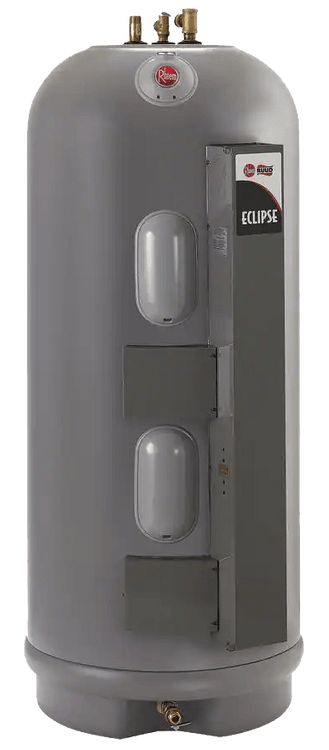

Eclipse™ non-metallic electric commercial water heaters are durable, lightweight, and offer an exclusive 10-year limited warranty*

Features & Benefits

• Non-metallic, lightweight composite tank – no anode rod required
• High-density polyethylene dent and scratch-resistant jacket
• System Sentinel LED indicators are provided for each element to show when power is on • Input options: 12.4, 18 or 24 kW
• Voltage options: 208, 240, or 480 VAC in either single phase or 3-phase (277 VAC in single phase only)
• Element wattages: 3100, 4500, or 6000 in each of the four voltages. The elements are low-watt density design (46, 67, 90 watts/sq. in.) with titanium sheath for superior protection
• Power control circuits use two surface-mounted thermostats and operate in two stages
• – Lower control is for the lower two elements, which provides recovery for most needs.
• – Upper control is for the upper two elements, which operates during high demands

Efficiency

• 98% thermal efficiency
• Well insulated for reduced standby heat loss

Performance

• Recovery rate: Up to 99 gallons GPH at a 100-degree rise
• 170° F maximum delivered temperature

Easy Installation & Service

• Eclipse’s lightweight tank is easier to maneuver and position
• Control circuit switch provided for dry fire protection during installation
• Bowl-shaped tank bottom drains completely
• Recessed drain valve is out of the way of brooms and scrubbers

Plus...

• Four titanium elements for resistance to lime build-up
• Full-port, full-flow, brass drain valve for faster draining
• Temperature and pressure relief valve at top of unit
• Water connections at the top of the tank are 1" swivel nuts. A nipple is installed on the outlet (1" x 3" long). The inlet has a vacuum valve connected with a 1 x 1 x 3/4 tee and a 1" close nipple to the swivel

Warranty

10-Year limited tank warranty
