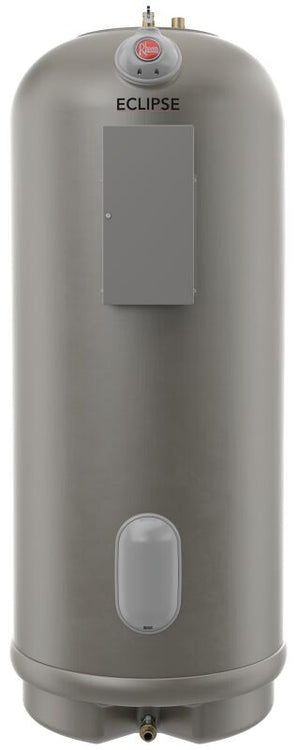

Rheem MELD105-TB Marathon Eclipse Light Duty Non-metallic 105 Gallon Commercial 12.1kw Electric Water Heater

  • Brand: Rheem
  • Availability: Drop Ship
  • SKU: MELD105-TB
  • Description
  • Specifications

Commercial 105 Gallon Marathon Eclipse Non-Metallic Electric Water Heater; Brand: Rheem; Model #: MELD105-TB; Series: Marathon Eclipse; Lightweight Tank; All Plastic Tank; Unmatched Tank Strength; 10-Year Limited Tank Warranty; Used in Motels, Hotels, Gyms, Schools, Restaurants, and Businesses.

BrandRheemWeight152 lbsHeight66-3/4"
Warranty10 YearsRecovery*49 GPHNPT3/4"
Fuel TypeElectricMax PSI150Max Temp170°F

*Recovery Capacity is based upon a 100° F water temperature rise and calculated per ANSI Z21.10.3 standards

Need assistance? Call us at 313-626-6800
Specifications Manual


  • Backed by a 10-year limited tank warranty
  • Save up to $4,000 in replacement costs
  • Terminal block with fused & non-fused configurations
  • Unmatched strength & durability
  • Rust & corrosion proof
  • Perfect for high-temperature applications
  • Factory shipped in simultaneous



 Terminal Block

Easy to convert standard models from simultaneous to non-simultaneous, single phase to three phase
Available on all models

High Efficiency Savings

Polyurethane insulation reduces energy consumption and standby heat loss
Pipe wrap kit included to achieve maximum energy savings

Unmatched Strength & Durability

Non-metallic, seamless, blow-molded polybutene inner tank protects against rust and corrosion
Multiple layers of filament-wound fiberglass give the tank unmatched strength
Recessed brass drain valve is out the way of brooms and scrubbers
High temperature polysulfone dip tube
Tough molded polyethylene outer shell resists dents, scratches, and salt air
Titanium upper and lower elements for superior resistance to lime build-up
All plastic tank eliminates the need for an anode rod

Easy Installation & Service

Lightweight tank is easier to maneuver and position
Bowl shaped tank bottom allows complete sediment draining
Water tight grommets protects against overhead moisture and condensation

 Product Performance

 Performance Information

170°F Maximum temperature setting
Automatic Temperature Control – Surface mounted thermostat automatically cycles on and off to maintain desired water temperature

 Gallon Capacity

First Hour Delivery

Recovery Capacity at 100°F Temp. Rise

75-Gallon 78 Gallons 49 GPH
85-Gallon 91 Gallons 49 GPH
105-Gallon 104 Gallons 49 GPH

Warranty & Other Product Features

Limited Tank Warranty – 10 years, Parts – 1 year
Temperature and pressure relief valve included
Factory-installed vacuum relief valve
Standard replacement parts
