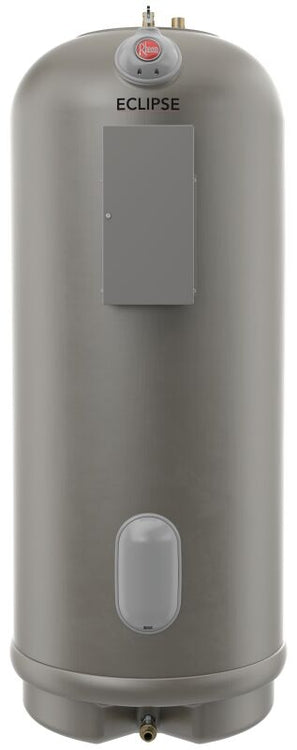

Rheem MELD85-TB Marathon Eclipse Light Duty Non-metallic 85 Gallon Commercial 12.1kw Electric Water Heater

Brand: Rheem

Availability: Drop Ship
SKU: MELD85-TB

$3,650.00

Description
Specifications

Commercial 85 Gallon Marathon Eclipse Non-Metallic Electric Water Heater; Brand: Rheem; Model #: MELD85-TB; Series: Marathon Eclipse; Lightweight Tank; All Plastic Tank; Unmatched Tank Strength; 10-Year Limited Tank Warranty; Used in Motels, Hotels, Gyms, Schools, Restaurants, and Businesses.

Brand	Rheem	Weight	140 lbs	Height	66-1/4"
Model	MELD85-TB/FTB	Gallons	85	Diameter	28-1/4"
Warranty	10 Years	Recovery*	49 GPH	NPT	3/4"
Fuel Type	Electric	Max PSI	150	Max Temp	170°F

*Recovery Capacity is based upon a 100° F water temperature rise and calculated per ANSI Z21.10.3 standards

BUILT TO LAST

Backed by a 10-year limited tank warranty
Save up to $4,000 in replacement costs
Terminal block with fused & non-fused configurations
Unmatched strength & durability
Rust & corrosion proof
Perfect for high-temperature applications
Factory shipped in simultaneous

FEATURES & BENEFITS

Terminal Block

Easy to convert standard models from simultaneous to non-simultaneous, single phase to three phase

Available on all models

High Efficiency Savings

Polyurethane insulation reduces energy consumption and standby heat loss

Pipe wrap kit included to achieve maximum energy savings

Unmatched Strength & Durability

Non-metallic, seamless, blow-molded polybutene inner tank protects against rust and corrosion

Multiple layers of filament-wound fiberglass give the tank unmatched strength

Recessed brass drain valve is out the way of brooms and scrubbers

High temperature polysulfone dip tube

Tough molded polyethylene outer shell resists dents, scratches, and salt air

Titanium upper and lower elements for superior resistance to lime build-up

All plastic tank eliminates the need for an anode rod

Easy Installation & Service

Lightweight tank is easier to maneuver and position

Bowl shaped tank bottom allows complete sediment draining

Water tight grommets protects against overhead moisture and condensation

Product Performance

Performance Information

170°F Maximum temperature setting

Automatic Temperature Control – Surface mounted thermostat automatically cycles on and off to maintain desired water temperature

Gallon Capacity	First Hour Delivery	Recovery Capacity at 100°F Temp. Rise
75-Gallon	78 Gallons	49 GPH
85-Gallon	91 Gallons	49 GPH
105-Gallon	104 Gallons	49 GPH

Warranty & Other Product Features

Limited Tank Warranty – 10 years, Parts – 1 year

Temperature and pressure relief valve included

Factory-installed vacuum relief valve

Standard replacement parts
