$127.84

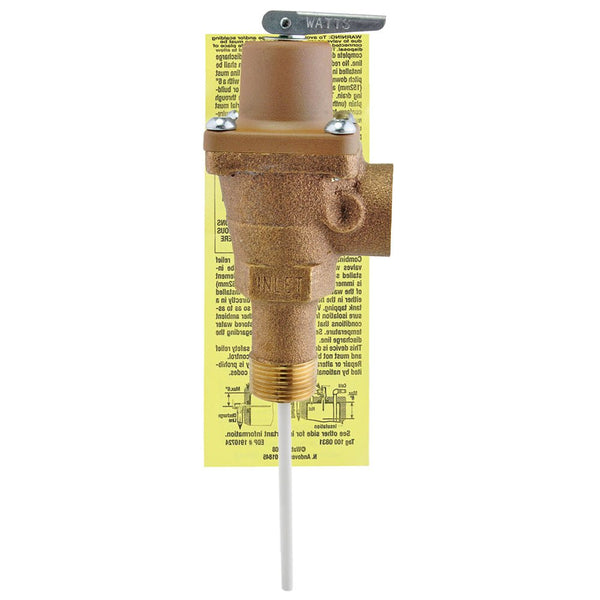

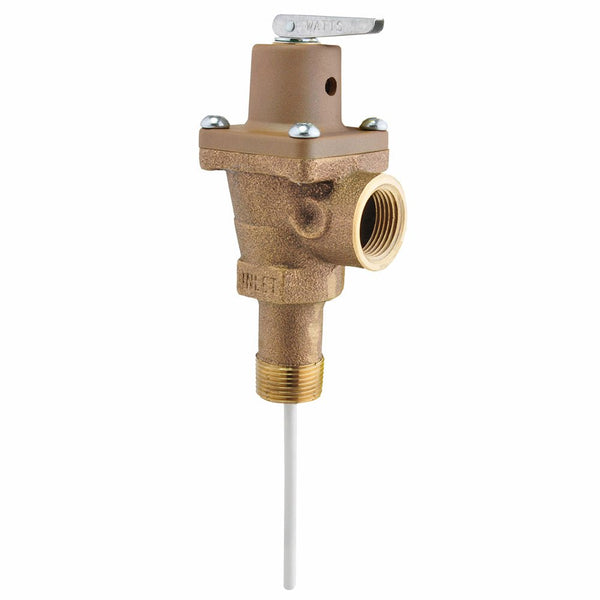

Rheem SP9013D Temperature and Pressure Relief Valve (T&P)
-
Brand
Rheem
-
Availability
Drop Ship
-
SKU
SP9013D
Product Features & Benefits
Temperature and Pressure Relief (T&P) Valve for Commercial Water Heaters. The Temperature and Pressure Relief Valve is a safety device that allows water to escape from the tank in the unlikely event the temperature or pressure inside the tank become excessive. This is an OEM genuine factory authorized part, ensuring high quality to keep your equipment running smoothly and safely.
- 150 PSI Pressure - 210 Degree Temperature
- 30-54 KW (200K BTU)
- Contact customer service at 248-892-1000 with model and serial number to verify the part for your particular water heater.
- 1-year limited warranty
- OEM genuine factory authorized part
Technical Data
| Maximum Temperature Setting (Deg. F): | 210 |
| Maximum Pressure Setting (psi): | 150 |
| CSA Capacity (BTU/HR): | 200,000 |
| Inlet Thread Size - NPT (in.): | 3/4 |
| Outlet Thread Size - NPT (in.): | 3/4 |
| Overall Length (in.): | 9-1/8 |
| Body Length (in.): | 5-5/8 |
| Sensor Length (in.): | 3-1/2 |
Replaces
| AP9013D-5 |
Shipping Information
Shipping weights and dimensions are for reference only for the purpose of calculating freight charges. For parcel shipping, dimensional weights are used by FedEx to determine the rate rather than the actual weight.
| Shipping Weight Actual (lbs.): | 1.60 |
|---|---|
| Shipping Weight Dimensional (lbs.): | 1.60 |
| Shipping Height (in.): | 2.45 |
| Shipping Length (in.): | 11.50 |
| Shipping Width (in.): | 3.10 |
| Country Of Origin: | US |
